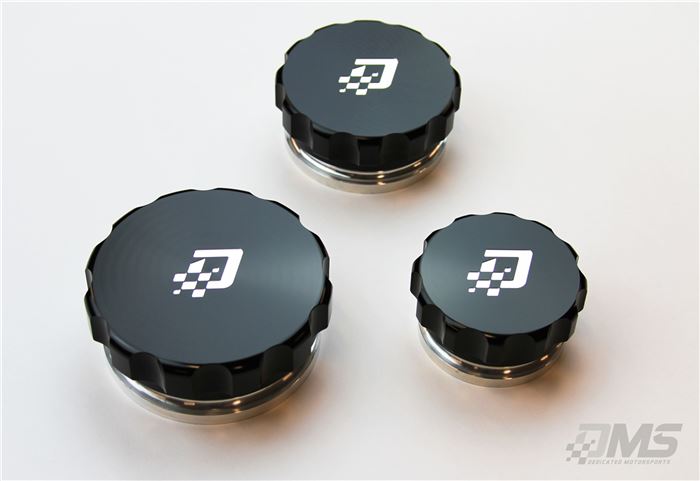

3" DMS Billet Aluminum Weld on Bung and Anodized Fill Cap

3" DMS Billet Aluminum Weld on Bung and Anodized Fill Cap

Alternative Views:


Our Price: $42.50


Availability: Usually Ships in 24 to 48 Hours
Product Code: VIB-3DMS
Qty:

Description


Description:

1 Weld On Bung And Cap.

Dimensions:
  • Anodized Color Specifications: Black and Silver
  • Bung Matierial: T-6061 Aluminum
  • Cap Matierial: Aluminum Composite
  • Bung Base Inner Diameter =A: 2-3/4" or 72mm
  • Bung Opening Inner Diameter =B: 3" or 75mm
  • Bung Base Outer Diameter =C: 3-3/4" or 96mm
  • Bung Opening Outer Diameter =D: 3-3/8" or 85mm
  • Bung Hieght = E: 1-1/2" or 36mm
  • Total Height With Cap: 1-3/4" or 44mm
  • Cap Outer Diameter: 4-1/8" or 106mm
  • Thread Pitch: 12NPT
