Dailey Engineering / PHR Billet Dry Sump System for 2JZ-GTE

Dailey Engineering / PHR Billet Dry Sump System for 2JZ-GTE

Alternative Views:


Our Price: $5,618.00


Availability: Usually Ships in 24 Hours.
Product Code: PHR-SUMPSYS1


Aluminum Rod Deep Pan Upgrade:


Balancer Being Used:


Billet Oil Pump Manifolds:


HV Pressure Section:


Billet Front Cover:


Remote Oil Filter Mount:


Pop-Off Valve:


Qty:
Description

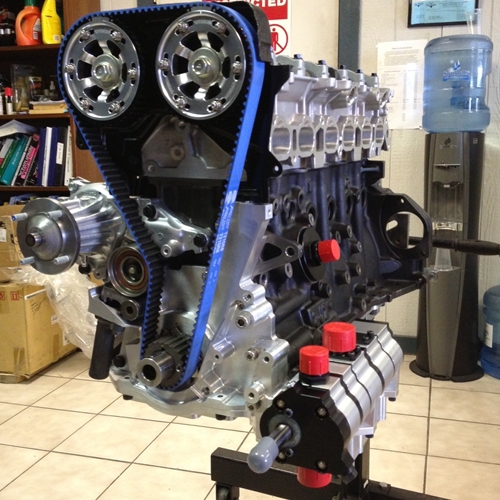

When PHR looked to develop a top of the line system we looked no further than Dailey Engineering and after strenuous testing we are proud to release our signature series dry sump kit for the 2JZ platform. With our unique integral dry sump oil system, the oil pump bolts directly to the oil pan thus eliminating the A/N lines between the oil pump and oil pan.  All scavenge lines are internally machined into the oil pan eliminating the costly weight and expense of external scavenge A/N lines.

As with most kits available we strived to engineer a pan that fit within the confines of the factory engine bay and did just that. The billet pan measures in at an astonishing 2.0 inches making it the slimmest on the market.

Unfortunately for someone who wants to retain OEM A/C the oil pump does take that spot.

One question we do have asked occasionally is can the OEM power steering pump be kept? The answer is yes. We have numerous kits running factory power steering and even aftermarket pumps.

Another first for the 2JZ platform is the turbo oil drain scavenge section integrated into the oil pump. Allowing for more aggressive turbo center cartridge positioning.

Applications: Drag, Drift, Road Course, Standing mile, Street, Time Attack.

Our kit includes the following items;

  • Proprietary Dailey Engineering Billet T6 6061 Oil Pan
  • Dailey Engineering 5 stage pump with rear drive
  • HTD Taper grip pump pulley
  • Belts
  • Drive Set for use on the ATI Damper
  • HTD Crank Pulley
  • Oil Filter Block-Off w/ Union adapter
  • Installation hardware kit

Additional Recommended Items;
  • Oil Tank
  • Modified OEM Oil Pump or Billet Front Cover
  • Remote Oil Filter Mount
  • Pop-Off Valve
Features
    • No
    • ATI V1
    • No
    • No
    • No
    • No
    • No
