Fore Fuel Rails for 18-20 F-150
Fore Fuel Rails for 18-20 F-150

Alternative Views:
Our Price: $265.00


Product Code: 18-104


Adapters and Crossover Options:

Crossover Line Type (if applicable):

Qty:
Description

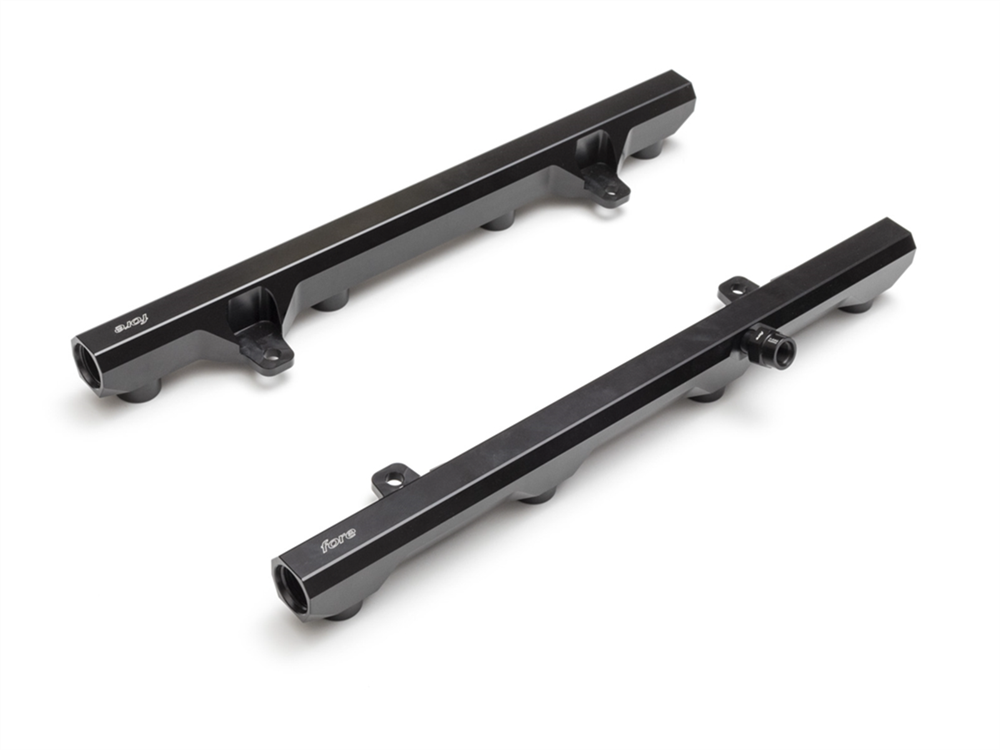

Fore Innovations monoblock fuel rails for the Gen 1/2 Coyote motor. Fully machined from solid block of 6061 aluminum, then black anodized and laser etched. Integrated mounting tabs eliminate rail tab flex under the highest intake and fuel pressures. Designed to use factory length fuel injector.

Crossover kits are unassembled. Installer will have to cut hose to length and assemble hose ends.

MUST use a PTFE based thread sealant on auxiliary port. Recommend Loctite #567 or Permatex 80631/80632.

SPECIFICATIONS
  • End port size: ORB-8 (o-ring boss with 3/4-16 UNF-2B threads)
  • Aux port size: NPT 1/8"
  • Sensor Port Size: ISO 6149-1 M10x1 with included Viton o-ring for use on OE sensor
FITS:
  • Gen 1/2 Coyote (must remove sensor adapter and plug aux port)
  • Gen 3 Coyote
  • Voodoo
  • All FRPP intakes
  • Not for use with any supercharger or intake that includes rails
